Which Is The Best Aluminum Valve For Liquid Cooling

The EK-KIT L360 R2.0 water cooling kit is a powerful kit for all users who seek simple, yet quality and effiicient all-in-one solution, assembled from selected market proven components.

Revision 2.0 (R2.0) further improves the quality and reliability of the original L series kits, introduced in 2013.

EK-KIT L360 R2.0 includes:

– universal CPU water block: EK-Supremacy MX (incl. mounting- & thermal material)
– radiator: EK-CoolStream PE 360 (Tripple)
– radiator fan: EK-Vardar F3-120 1850rpm (3pcs)
– water pump / reservoir unit: EK-XRES 100 DDC MX 3.1 PWM
– tubing: EK-Tube ZMT Matte Black 15,9/9,5mm (2 meters)
– compression fittings: EK-ACF Fitting 10/16mm Nickel (6 pcs)
– coolant concentrate:EK-Ekoolant EVO Clear (100mL; for 1L of coolant)
– additional pump holder (120mm fan hole pattern)
– Y-cable splitter: EK-Cable Y-Splitter 3-Fan PWM (10cm)
– ATX bridging plug

EK-Supremacy MX UNI is a reduced cost variant of EK-Supremacy EVO flagship performance water block, introduced in 2014. It has been designed to lower the production costs yet still offer premium hydraulic- and thermal performance at the best price.

EK-CoolStream PE series radiator fits in majority of computer chassis and will succesfully take the heat out of your system. In combination with in-house developed EK-Vardar high-static pressure fan the unit provides silent operation with great coooling performance.

EK-XRES 100 DDC MX 3.1 PWM water pump / reservoir combo is also brand new, cost-reduced variant of the market proven EK-XRES DDC pump/reservoir combo unit, powered by Laing DDC 3.1 PWM (6W) pump.

High quality EK made ZMT (Zero Maintainance Tubing) EPDM rubber tubing ensures long lasting operation and does not suffer from plasticizer leaching effect, very common with regular PVC tubing.

Majority of components have been pre-assembled resulting in quick and painless ins

The new temperature sensor from Phobya with g1/4″ inner thread and G1/4″ outer thread respectively. With its compact design this sensor can be integrated into the cooling loop at virtually any suitable thread. Its timeless design makes it blend right into the system, especially as it’s low height of only 11,6mm (without threads) allows it to fit below almost any connector. The sensor cable is equipped with a standard 2-Pin plug. High-Flow, no narrowing of the cooling channel inside of the sensor! Also see example of installation. This cable is not only practical, it is also optically appealing, The surrounding mesh, also called mesh, which is surrounding the cable itself offers the advantages that every Pro-modder is looking for: A completely unique look, even of the cables in the system! Special attention was paid to the combination of cable connectors, sleeve and heatshrink which were used to ensure great design and a unique as well as elegant look.

Model: 71227

EK-AF FillPort is a panel mounted adapter, primarily designed as an extension to reservoir to function as a service port. This adapter fitting allows easier topping-off and can alternatively also serve as a drain-port.

This adapter is equipped with one standard female G1/4″ port and is closed-off by enclosed G3/8″ Plug, required Allen Key is also enclosed.

Made from black coated CNC machined brass.

Technical data:
Threading: 1 x G1/4″
Plug: 1 x G3/8″
Thread length: 7.0mm
Diameter: 33.0mm
Height: 27.0mm

ROHS 2.0 compliant!

PLEASE NOTE:

This product should NOT be installed with any aluminum Fluid Gaming parts!

Model: 3831109846933

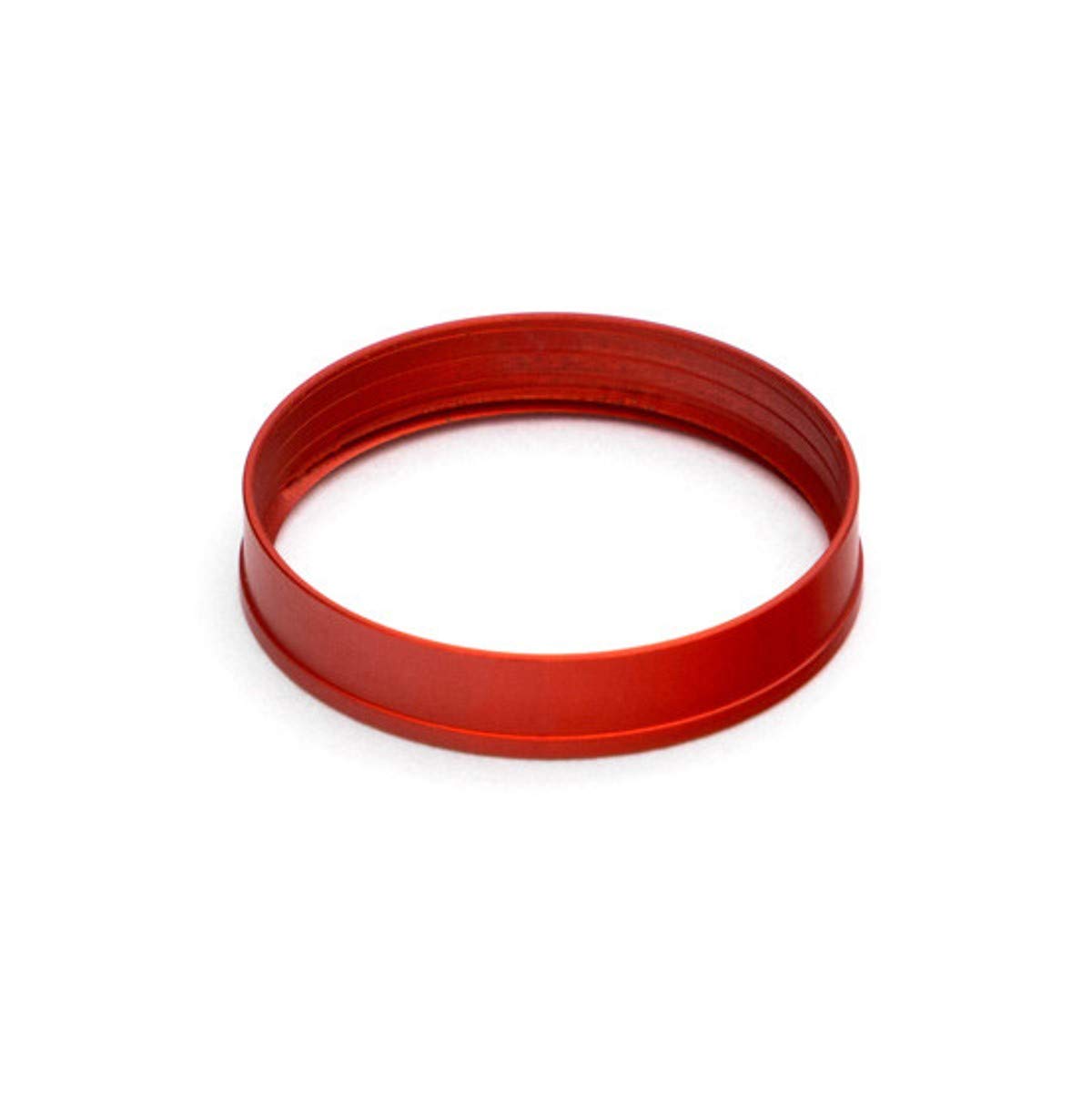

EK-Torque STC 12/16 Color Rings Pack – Red (10pcs) are the interchangeable aesthetic rings for EK’s new minimalistic 12/16mm soft-tube compression fittings designed for use with 12/16mm ID/OD soft tubing.

These aesthetic rings are made of anodized aluminum.

The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring.

These accent rings are guaranteed to be compatible only with EK-Torque STC 12/16 fittings.

Made in Europe – Slovenia!

Model: 3831109816769

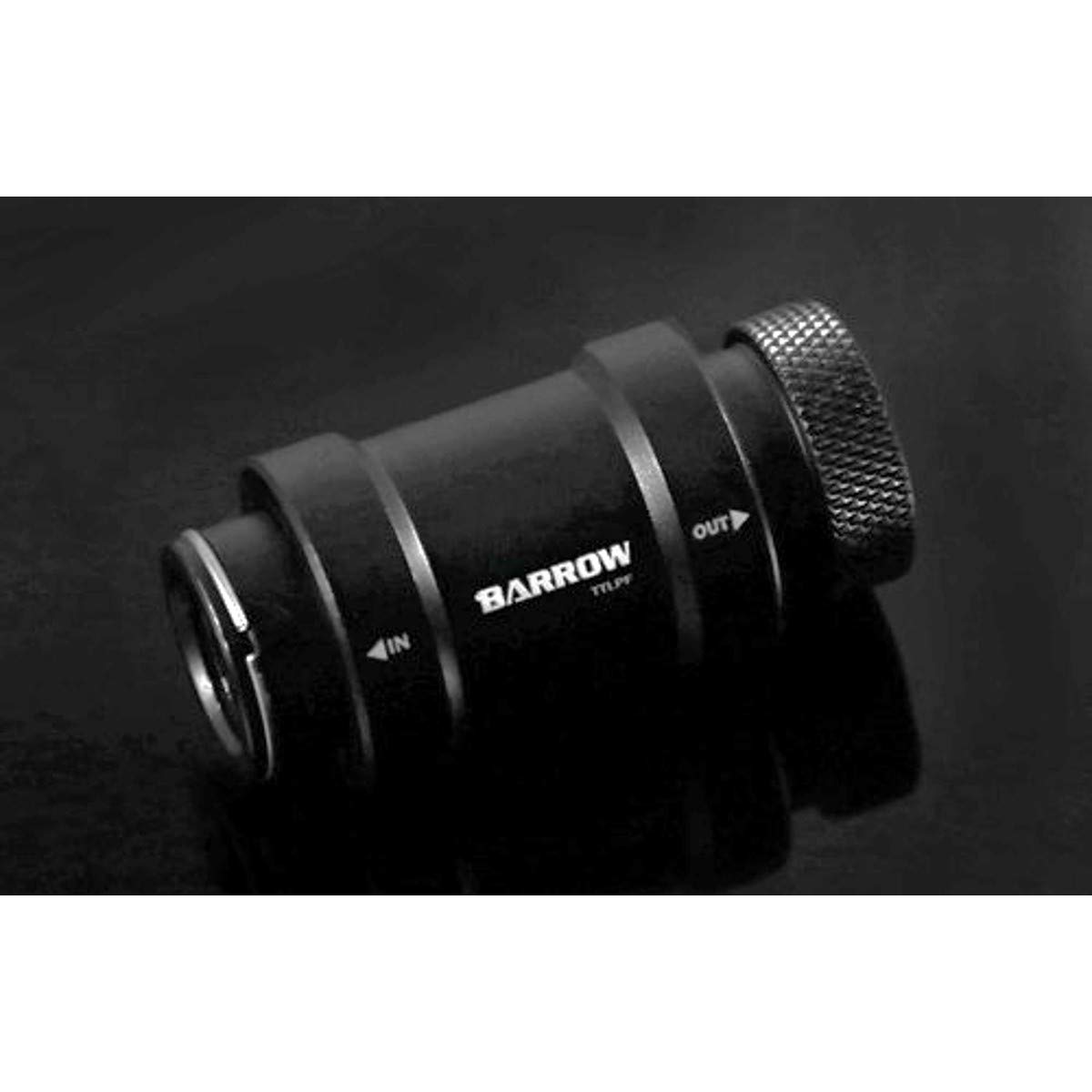

Subversion of the traditional water cooling system of the new concept of valve products, water flow through the design, G1/4″ standard internal thread interface to provide good expansion compatibility. A multicolor matching program, to provide more personalized choice

Note: please follow the instructions in the correct installation of water into and out of the water, is strictly prohibited to use in the opposite direction

Model: TTLPF

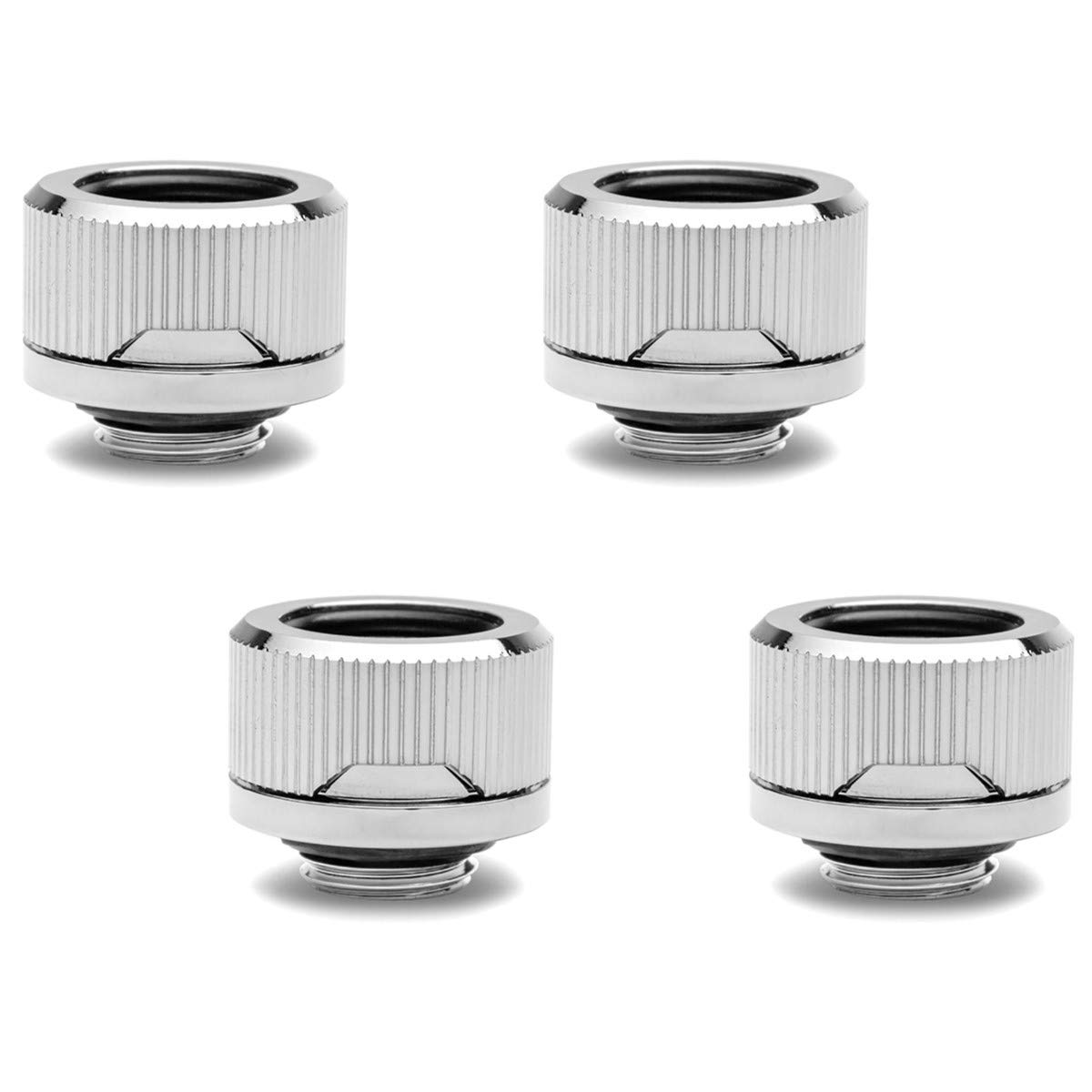

EK-Torque HTC 16 Nickel fittings are EK’s new minimalistic 16mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings.

The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.

The fitting barb and the compression rings are covered with a unique, high-quality nickel finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings.

The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It’s highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting.

Technical data:
– Thread: G1/4″ BSP; 4.5mm male thread length
– Supported tube: 16mm OD
– The outer diameter of a fitting: 24mm
– Installed height: 15mm

PLEASE NOTE:

• Please wet the o-ring using drops of water prior to installing the solid tube.
• Do not use excessive force when inserting solid tube or when attaching fitting barbs using Allen Key 9mm
• It is mandatory to chamfer the edges of cut solid tube to prevent o-ring damage. EK recommends a 0.5mm x 45° chamfer.
• This product should NOT be installed with any aluminum Fluid Gaming parts!
• The aesthetic rings are sold separately.

Model: TR-3831109813874-4P

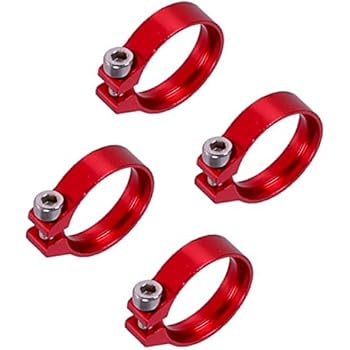

Hose clamp for fixation of tubing on barbed fittings without union nuts.

The great advantage of barbed fittings is the larger inner diameter compared to compression fittings. Only the lack of additional fixation was a problem. But now these all-new hose clamps provide an optically appealing solution to the issue. Easy to install with a hexagonal socket screw, available in many colors and functional at the same time – the ultimate hose clamp!

Technical specifications:
Material: Blue anodized Aluminum
Color: Blue
Compatible inner diameter: 10mm to 11mm (3/8″ to 7/16″)

Please note: Should you use the hose clamps on barbed fittings, please note that the fittings will widen the outer diameter of the tubing by 1-2mm (depending on the wall thickness)

Model: TR-68257-4P

EK-Torque HTC 14 Black fittings are EK’s new minimalistic 14mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings.

The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.

The fitting barb and the compression rings are covered with a unique, high-quality black finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings.

The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It’s highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting.

Technical data:
– Thread: G1/4″ BSP; 4.5mm male thread length
– Supported tube: 14mm OD
– The outer diameter of a fitting: 22mm
– Installed height: 15mm

PLEASE NOTE:

• Please wet the o-ring using drops of water prior to installing the solid tube.
• Do not use excessive force when inserting solid tube or when attaching fitting barbs using Allen Key 9mm
• It is mandatory to chamfer the edges of cut solid tube to prevent o-ring damage. EK recommends a 0.5mm x 45° chamfer.
• This product should NOT be installed with any aluminum Fluid Gaming parts!
• The aesthetic rings are sold separately.

Model: TR-3831109815960-4P

Bitspower Premium Master Hard Tube Fitting Are Design For Hard Tubing OD16MM. They Have A Unique Surface For Each Nut With Concentric Circles By Handmade. Sold as a 6-pack.

Model: BP-PREMHT16-ABL6P

Conclusion

By our suggestions above, we hope that you can found aluminum valve for liquid cooling for you.Please don’t forget to share your experience by comment in this post. Thank you!
