Best Heatsink Cooling Fan For Lattepanda

Note: LattePanda Alpha & Delta is not compatible.

INTRODUCTION

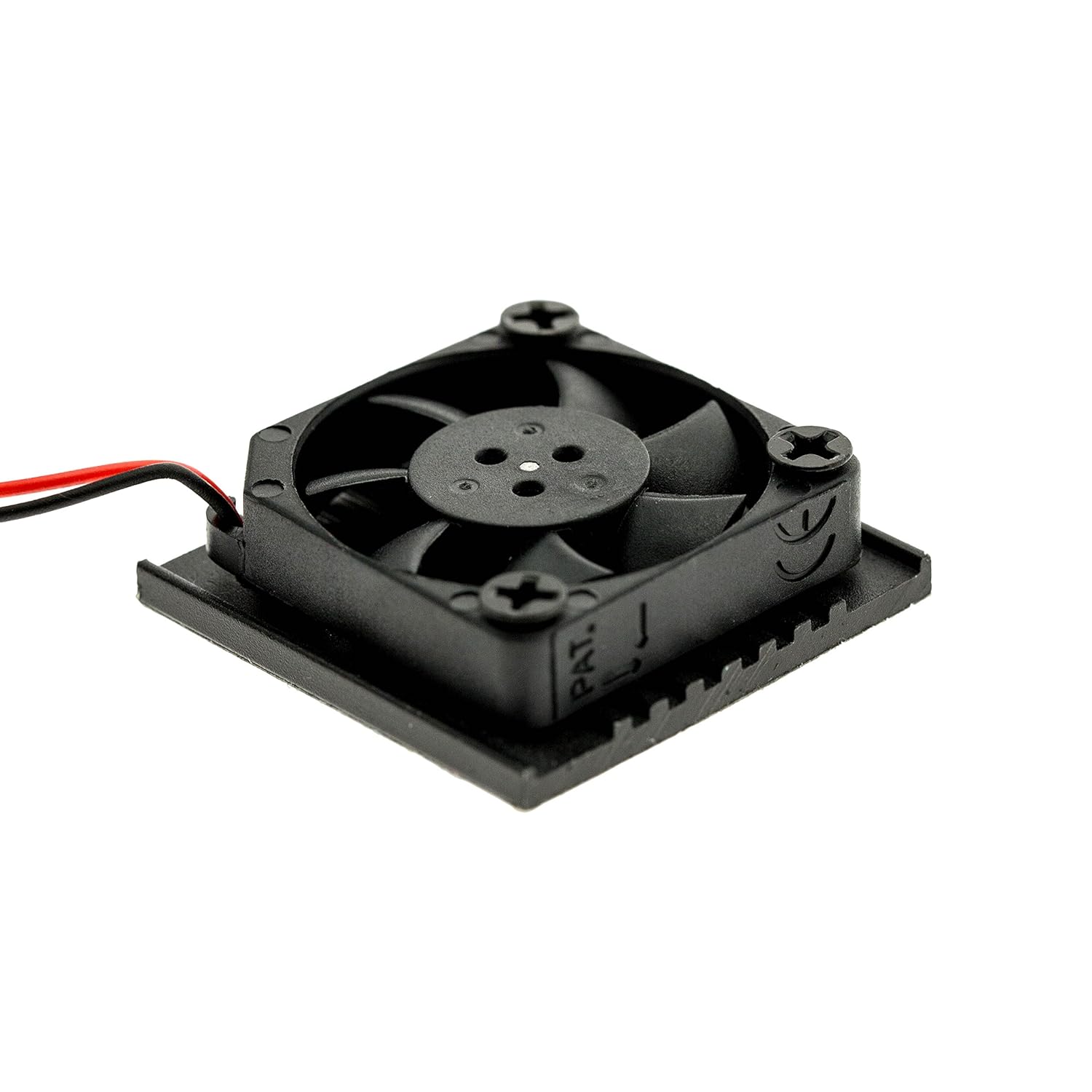

Is your LattePanda (windows dev board) running hot and throttling?
This heat sink and fan combo will cool the CPU for smooth performance.
The fan keeps the unit running at a stable temperature. The 2-Pin jumper wire makes it easily to connect with the CN2 headers on the board.
This fan has a thermal pad on the back that can stick on the metal shield on the board. With its aluminum casing, heat from CPU will be absorbed fast, giving you better performance. This is a simple and effective way to make the LattePanda cool!

Note: Please pay attention to wire polarities
Red -> 5V
Black -> GND

SPECIFICATION

Operating Voltage: 5v
Operating Current: 0.14A
Rated Speed: 7500 RPM
Cable Length: 18cm
Interface Type: 2.54mm 2-Pin DuPont Female Connector
Dimension: 35 * 35 * 10 mm/1.38 * 1.38 * 0.39 inches
Dimension of fan: 30 * 30 * 7 mm/1.18 * 1.18 * 0.28 inches
Weight: 14g

SHIPPING LIST

Aluminum Case Cooling Fan x1

INTRODUCTION

This tiny little orange heatsink is a perfect solution for cooling off small surface-mount components such as stepper motor drivers, CPUs on LattePanda or a similar mini PC. It is made of pure copper to increase heat dissipation and transfer for your machine running cooler in summer. A total of 5 pieces in this pack can cover all heat sources to ensure your LattePanda working at a stable temperature.

These heatsinks also fit perfectly inside LattePanda V1.0 wood and acrylic cases.

SPECIFICATION

Pure copper construction
Self-adhesive
Dimensions (per unit): 0.52 x 0.48 x 0.19 inches
Weight: 32g

SHIPPING LIST

Self-adhesive Pure Copper Heatsink x5

Aluminum Alloy case for LattePanda Alpha & LattePanda Delta

Specification
Material: Aluminum Alloy
Size: 11.5×7.8×1.8cm /4.53×3.07×0.71inch
Compatible with: LattePanda Alpha & LattePanda Delta

Features
Passive cooling aluminum alloy case with good heat dissipation;
All ports and GPIO reserved, perfect fit for LattePanda Alpha and Delta;
Four fan holes are reserved in the upper cover; fans with a 400mm side length; the center distance of the holes is 32 mm;
With high quality silicone grease and copper heatsink, we provide you with the perfect heat dissipation scheme.
Reinforced aluminum material, lightweight and durable;
Easy to install;
Ultra-thin design

Note:
1. Please remove the pre-installed cooling fan on LattePanda board when using the Aluminum Alloy Case.
2.For your safety, please do NOT touch the case directly during use to prevent burns.
3.It is normal that the copper heatsink go black after being used for a long time; Those who mind can polish it with sandpaper.
4. The LattePanda Alpha or Delta board and the cooling fan are not included.

Shipping list
1 x Aluminum Alloy Case for LattePanda Board
1 x Copper heatsink (19.92 x 15.27 x 0.9mm/0.78 x 0.6 x 0.03inch)
1 x 1g Thermal grease silicone

This is a LattePanda alpha 864 or lattePanda alpha 800 aluminum passive cooling are designed for LattePanda alpha 864 or LattePanda Delta; With this box, you no longer need to use a fan to cool the motherboard, you no longer have to endure the noise of the fan, and we reserve all the interfaces and GPIO pins for your DIY. This box uses high-quality aluminum alloy materials. As we all know, aluminum alloy has excellent thermal conductivity. We use high-quality Shin-tsu X-23-7921-5 CPU silicone grease and copper sheet as the filling material for the housing and CPU. This ensures that heat is quickly transferred to the aluminum alloy housing.
In order to facilitate the rapid heat dissipation of the housing, this box also supports the installation of a fan to dissipate the housing, but this is not required.
LattePanda is a win10 mini pc; you can refer to www.lattepanda.com;

Test Experience-Included Cooling Fan:
According to our test, the case can provide enough heat dissipation ability even when the CPU is working on 100%, but this will lead to the temperature of the case (cover) will be up to 72 ℃.
So we design four screw holes on the case for you to install the cooling fan, which can help the case rapidly cooling down when you use the fan on the case. Cooling Fan(4007) is included in this package.
You could also use cooling fans like 4010, 4012 fan. The fan Dimensions should be 40 x 40mm with 32 ± 0.3mm hole, and the screws should be M3 Screws.
We suggest to use the M3 nylon screws, which will not leave scratches on the case.

Package Including:
1 * LattePanda Aluminum Alloy Case
1 * 4007 Cooling Fan
1 * Copper heatsink (0.78 x 0.6 x 0.03inch)
1 * 1g Thermal grease silicone

[Note]
The Lattepanda Board is not included in the packing list.

The aluminum alloy armor case for LattePanda Alpha & Delta board has been released by Geekworm, you can refer to ASIN :B07RVJQFRM to know more about it.

[Packing List]
1 x Aluminum Alloy Case for LattePanda V1.0
1 x Cooling Fan with Heat Sink

[Aluminum Alloy Case Enclose]
This case is designed for LattePanda V1.0 board by Geekworm;
LattePanda is a win10 mini pc; you can refer to www.lattepanda.com;

[Feature]
With light pipe
CNC machining and manufacturing;Anodic oxidation surface treatment process
Compatible with LattePanda 2G/32GB & 4G/64GB
Support cooling fan
Easy installation

[Super-Mute Cooling Fan with Heat Sink]
[INTRODUCTION]
Is your LattePanda running hot and throttling?
This heat sink and fan combo will cool the CPU for smooth performance.
The fan keeps the unit running at a stable temperature. The 2-Pin jumper wire makes it easily to connect with the CN2 headers on the board.
This fan is low noise and has a thermal pad on the back that can stick on the metal shield on the board. With its aluminum casing, heat from CPU will be absorbed fast, giving you better performance. This is a simple and effective way to make the LattePanda cool!

[Notice]
Please pay attention to wire polarities
Red -> 5V
Black -> GND

[SPECIFICATION]
Operating Voltage: 5v
Operating Current: 0.10A
Rated Speed: 6500 RPM
Cable Length: 15.5cm
Interface Type: 2.54mm 2-Pin DuPont Female Connector
Dimension: 30.0 * 30.0 * 7.2 mm
Weight: 14g

INTRODUCTION

The low profile ultra low noise fan keeps your LattePanda running at a stable temperature. The 2-Pin jumper connector makes it easily to connect with the CN2 headers on the board.

The aluminum heat sink includes an adhesive thermal pad on the rear that can stick on the metal shield on the board. With its aluminum casing, heat from CPU will be absorbed fast, giving you the best performance. This is a simple and effective way to keep your Lattepanda(win10 mini pc) cool!

Note: Please pay attention to wire polarities

Red – 5V

Black – GND

SPECIFICATION

Dimensions: 35 x 35 x 10 mm/1.38 x 1.38 x 0.39″

Fan Dimensions: 30 x 30 x 7 mm/1.18 x 1.18 x 0.28″

Weight: 14g

SHIPPING LIST

Aluminum Case Cooling Fan x 1

INTRODUCTION

This acrylic case is a solid enclosure for your LattePanda single board computer.

Assembly is simple and printed assembly instructions are included. The entire case assembly can be completed within an hour and requires no glue!

What is a LattePanda?

A LattePanda is a complete Windows 10 single board computer! It includes everything a regular PC has and can do anything that a regular PC does. It is compatible with almost every gadget you know: printers, joysticks, cameras and more. Any peripherals that work on your PC will work on a LattePanda. A LattePanda comes pre-installed with a full, pre-activated version of Windows 10, where you can install powerful tools such as Visual Studio, NodeJS, Java, Processing, and more. Using existing APIs, you can develop your own software and hardware projects on a LattePanda as you would on a normal PC – C#, Javascript, Ruby and so on. Say goodbye to your bulky laptop!

SPECIFICATION

LattePanda 2G/32GB 4G/64GB compatible

Material: Acrylic/PMMA

Glueless Assembly

Dimensions: 95 x 76 x 36mm / 3.78 x 2.99 x 1.42″ (Assembled)

Weight: 124g

SHIPPING LIST

Acrylic Parts x 2

Assembly Instructions x 1

Conclusion

By our suggestions above, we hope that you can found heatsink cooling fan for lattepanda for you.Please don’t forget to share your experience by comment in this post. Thank you!
