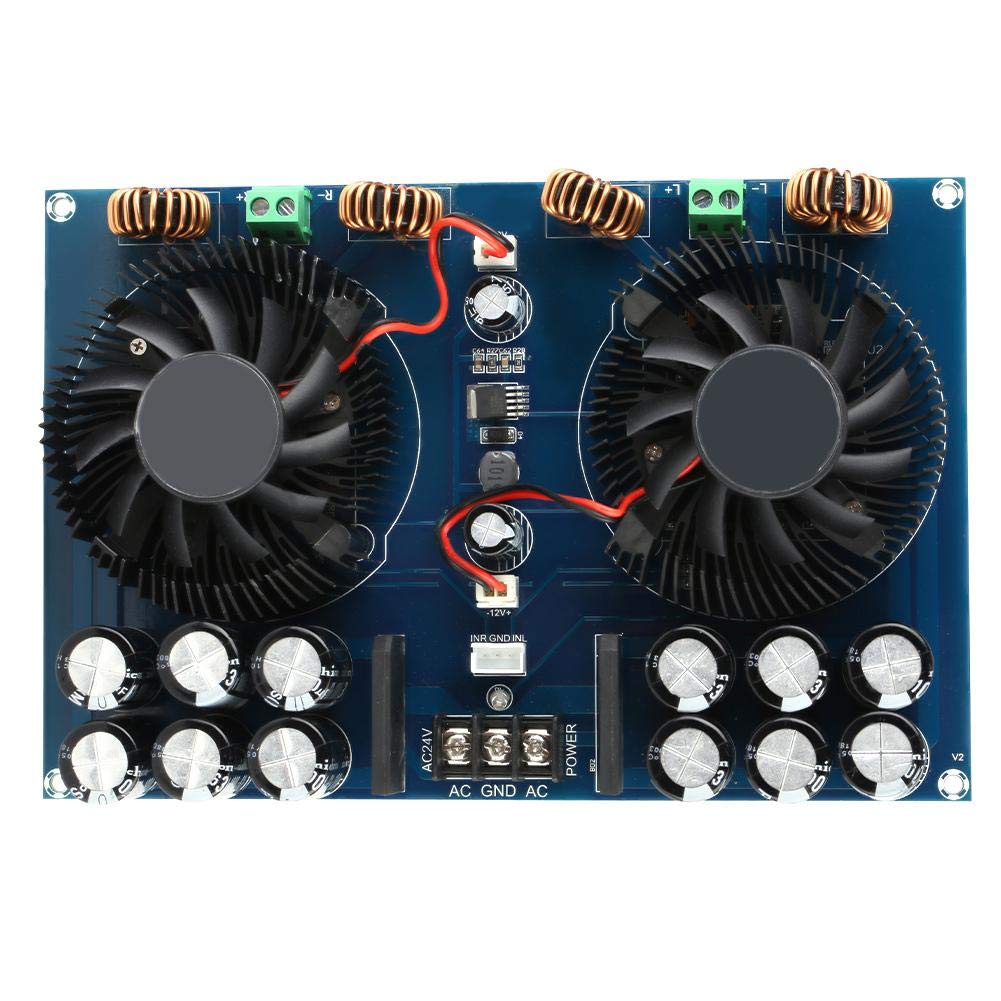

High Power Amplifier Board 2420W Dual Channel TDA8954TH Digital Audio Power Amplifier Board Subwoofer Stereo Audio Amp Board with Cooling Fan
- ★DUAL BTL CHIPS: The amplifier board is configured with independent dual BTL chips, high output power, good sound quality, no distortion, delivering you a great hearing enjoyment.
- ★DUAL CHANNEL AMPLIFIER: Dual channel amplifier input voltage range is AC 12V-28V (recommend 24V) and output power is 420W+420W, supporting connection with 2-8Ω speakers.
- ★HIGH EFFICIENCY: The amplifier uses a new original TDA8954TH chip, with the mellow quality of analog amplifier and digital amplifier, high efficiency.
- ★WITH COOLING FAN: It has the fan for excellent cooling effect, reducing inside heat accumulation and enhancing service life.
- ★GREAT APPLICATION: Inductance of large magnetic ring and copper core winding finite AC current, suitable for mobile phone, computer, home theater or DIY audio.
Specification:
Model: XR-M258
Chip: TDA8954TH
Input Voltage: 2 * AC 12V-28V (2 * 24V is recommended)
Output Load: 2-8Ω (4Ω is recommended)
Output Power: 420W*2
Item Size: 180 * 120 * 30mm / 7.09 * 4.72 * 1.18in
Package Weight: Approx. 505g / 17.8oz
Package List:
1 * Amplifier Board
1 * Audio Cable
Deke Home 4 Solderless Breadboard Kit. 2×830(large)+2×400(small) Arduino Bread board for Proto Shield electronic distribution circuit. Connecting mini blocks boards raspberry pi jumper wires circuits
- 2 x 830 point + 2 x 400 point Solderless Breadboards (630 tie-point ic-circuit area plus 2×100 tie-point distribution strips providing 4 power rails)
- Convenient for the prototypes and circuit design experiment and other DIY projects. Perfect for Arduino, Raspberry Pi, and other programming boards
- Self-adhesive tape on the back, make it easy to stick on the prototype shield
- ABS plastic body with black printed legend. color legend on distribution strips.
- No wobble. The components will sit well after assembly due to tight plug-in contacts.
Fellowes 6-Outlet Office/Home Power Strip, 15 Foot Cord – Wall Mountable (99026)
Economical Fellowes Power Strip with 6 outlets. Office grade power strip has 3-prong grounded plug and outlets. Illuminated on/off switch with 15-amp circuit breaker. 15 foot power cord. Wall mountable. UL and cUL approved.

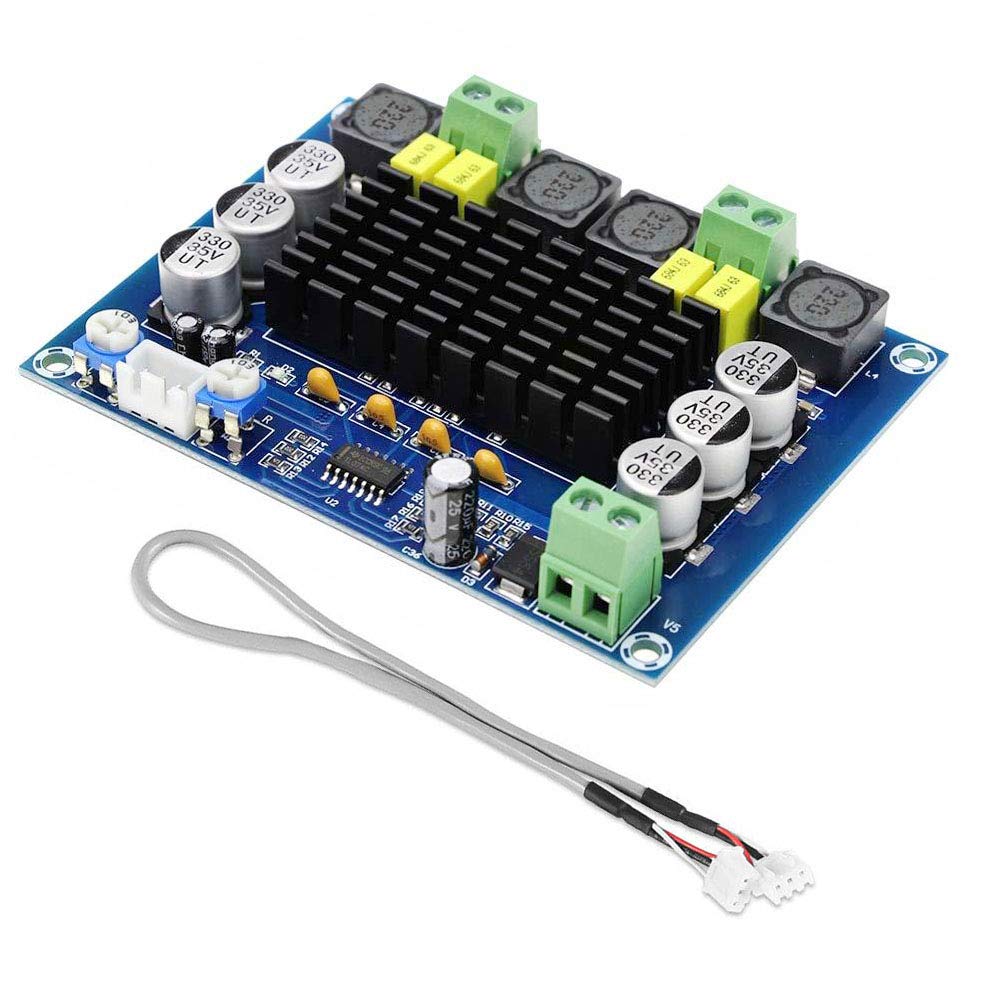

VEGET TPA3116D2 Dual Channel XH-M543 Digital Audio Power Amplifier Board TPA3116, DC12-26V 2x120W DIY Module High Power Stereo Amp Board for Car Vehicle Computer Speaker DIY Home Theater Audio System
- Strong TPA3116D2 chip is a digital power amplifier chip, with low idle loss characteristics,makes it work well and quickly.
- On board front-facing IC to improve the input sensitivity, high-definition sound quality.
- It can be used for for car vehicle computer speaker, family audio and video, and empty square.
- This product has the characteristics of loud sound ,the capacitance are large, ,excellent sound quality.
- There is no solder joint on the back of the circuit board,the chip capacitors and the solder solder board together, so there is no possibility of short circuit.
Electronics-Salon Panel Mount 10 Position Power Distribution Fuse Module Board, For AC/DC 5~32V .
- Panel Mount Power Distribution Fuse Module Board.
- Work voltage: AC or DC 5~32V, total current rating 40Amp. Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
- Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Panel Mount Power Distribution Fuse Module Board.
Specification:
Work voltage: AC or DC 5~32V, total current rating 40Amp.
Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function
FR-4 fiber glass PCB, dual copper layers.
Electronics-Salon DIN Rail Mount 10 Position Power Distribution Fuse Module Board, For AC/DC 5~48V .
- DIN Rail Mount Power Distribution Fuse Module Board.
- Work voltage: AC or DC 5~48V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
- Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
DIN Rail Mount Power Distribution Fuse Module Board.
Specification:
Work voltage: AC or DC 5~48V, total current rating 40Amp.
PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Fuse holders for 5x20mm(DxL) tube fuse, factory-installed fuses T6.3Amp. with fuse fail indication function
FR-4 fiber glass PCB, dual copper layers.
fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
USAQ F550 550mm Hexacopter Drone Frame Integrated Power Distribution Board (PDB)
The H550 V3 is a well thought out 550mm hexcopter frame built from quality materials. The main frame is glass fiber while the arms are constructed from ultra durable polyamide nylon.
This version 3 of the H550 features integrated PCB connections for direct soldering of your ESCs. This eliminates the need for a power distribution board or messy multi-connectors keeping your electronics layout very tidy. V3 also comes with stronger molded arms over V1 and V2, so no more arm breakage at the motor mount on a hard landing.
Assembly is a breeze with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required. It utilizes one size of bolt for the entire build, making the hardware very easy to keep in order and only requiring one size of hex wrench to assemble.
The added lift capacity of a hex configuration makes this frame ideal for carrying larger payloads such as camera systems and other electronic components. This makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics!
The H550 also features colored arms (2 white, 2 black and 2 red) which are great for orientation. It helps to keep you flying the right direction without the need for different colored props.
We offer a full line of multi-rotor electronics such as multi-rotor control board, ESC & motors. It has never been easier or more affordable to get a quad in the air!
Electronics-Salon DIN Rail Mount 10 Position Power Distribution Fuse Module Board, for AC110V
- DIN Rail Mount Power Distribution Fuse Module Board.
- Work voltage: 80~140Vac, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
- Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
DIN Rail Mount Power Distribution Fuse Module Board.
Specification:
Work voltage: 80~140Vac, total current rating 40Amp.
PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 6.3A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Fuse holders for 5x20mm(DxL) tube fuse, factory-installed fuses T6.3Amp. with fuse fail indication function
FR-4 fiber glass PCB, dual copper layers.
fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
Electronics-Salon DIN Rail Mount 10 Position Power Distribution Fuse Module Board, For AC/DC 5~32V
- DIN Rail Mount Power Distribution Fuse Module Board.
- Work voltage: AC or DC 5~32V, total current rating 40Amp. PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H). Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
- Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
- P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
DIN Rail Mount Power Distribution Fuse Module Board.
Specification:
Work voltage: AC or DC 5~32V, total current rating 40Amp.
PCB Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
Module Dimensions: 153mm x 87mm x 53mm (W x L x H).
Input terminals: pitch – 7.62mm/0.3″, current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
P1 output terminals: pitch – 5.08mm/0.2″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
P2-1 to P2-10 output terminals: pitch – 7.5mm/0.295″, maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function
FR-4 fiber glass PCB, dual copper layers.
fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
(8PCS) Breadboards Kit Include 4PCS 400 Points 4PCS 830 Points Solderless Breadboards Kit for Electronic Projects and Arduino Proto Shield Distribution Connecting Block
- 400 point and 830 point breadboards are available to meet your various experimental needs.
- White ABS Plastic Body with Black Printed Legend. Color Legend on Distribution Strips.
- With Self-Adhesive Tape on the Back, Easy to Stick on the Arduino Prototype Shield.
- Inter Connect Any Components with 20-29 Awg (0.3-0.8mm) Wire.
- Good for Arduino Breadboard Jumper Wires kit Project and other Electrical DIY kits.
Product Features:
830 tie points breadboards: 630 tie-point ic-circuit area plus 2×100 tie-point distribution strips providing 4 power rails.
400 tie points breadboards: 300 tie-point ic-circuit area plus 2×50 tie-point distribution strips providing 4 power rails.
Wire size: Suitable for 20-29 AWG wires.
Material: ABS Plastic Panel, Tin Plated Phosphor Bronze Contact Sheet.
Voltage / Current: 300V/3-5A.
Package includes:
4PCS 830 Tie-Points Breadboard
4PCS 400 Tie-Points Breadboard
